如何将EDI报文转换为CSV格式文件？

发表于 2020年3月11日作者知行软件

如果您对EDI项目实施有一定的了解，想必您一定知道，在正式开始EDI项目实施之前，都会有EDI顾问与您接洽，沟通EDI项目需求。其中，会包含EDI通信双方使用哪种传输协议，传输的报文是符合什么标准的，传输的业务报文都包含哪些种类，标准的EDI报文转换成什么格式，是否与企业现有业务系统集成。以上问题，在项目需求沟通初期都务必要确认清楚。

以上，我们提到标准的EDI报文转换成什么格式，这一问题其实也是很多客户在项目实施中比较纠结的一点。实际上，这主要取决于您企业的信息化情况。通常，企业如已有业务系统，为了实现数据自动化处理，都会选择与现有的业务系统集成，支持的方式有很多，比如金蝶、用友可以通过数据库表方式与EDI系统集成，某客户的物流管理系统选择API方式与EDI系统集成，诸如此类。当然，也存在部分客户没有业务系统的情况，那EDI数据转换成什么格式才方便业务人员读取、操作呢？

本文以X12 830报文转换为CSV格式文件为例，从收到X12 830报文开始，依次按照系统处理顺序，介绍如何使用知行EDI系统将X12 830报文转换为CSV格式。实际上，CSV这种方案不只是适用于没有业务系统的企业，有的业务系统也是支持直接导入CSV格式文件的，同样也适用CSV方案。

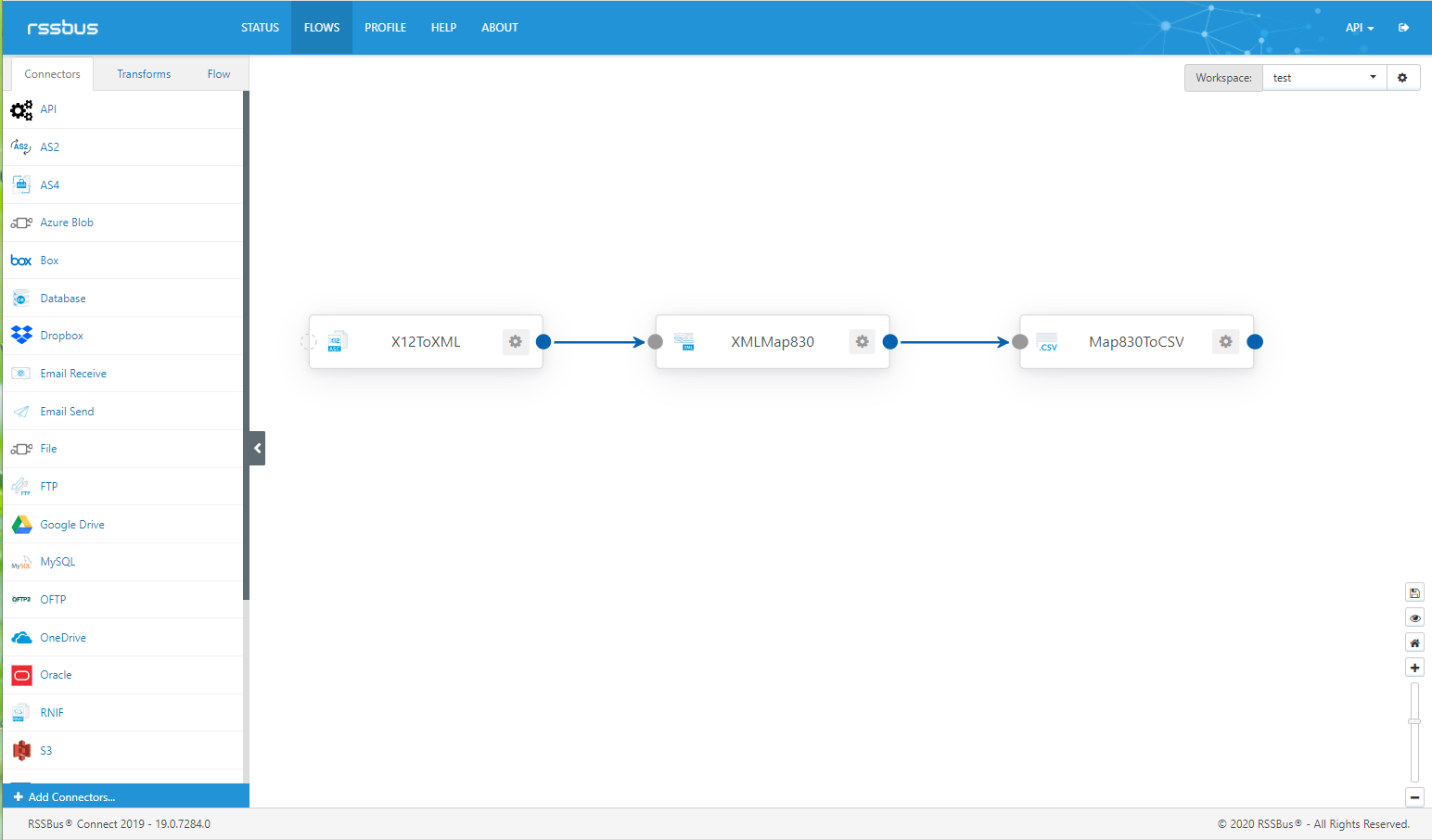

以下，是一个完整的X12 830报文转换为CSV格式的工作流。其中，经由3个端口处理，最终解析得到CSV格式的830文件。

X12ToXML端口

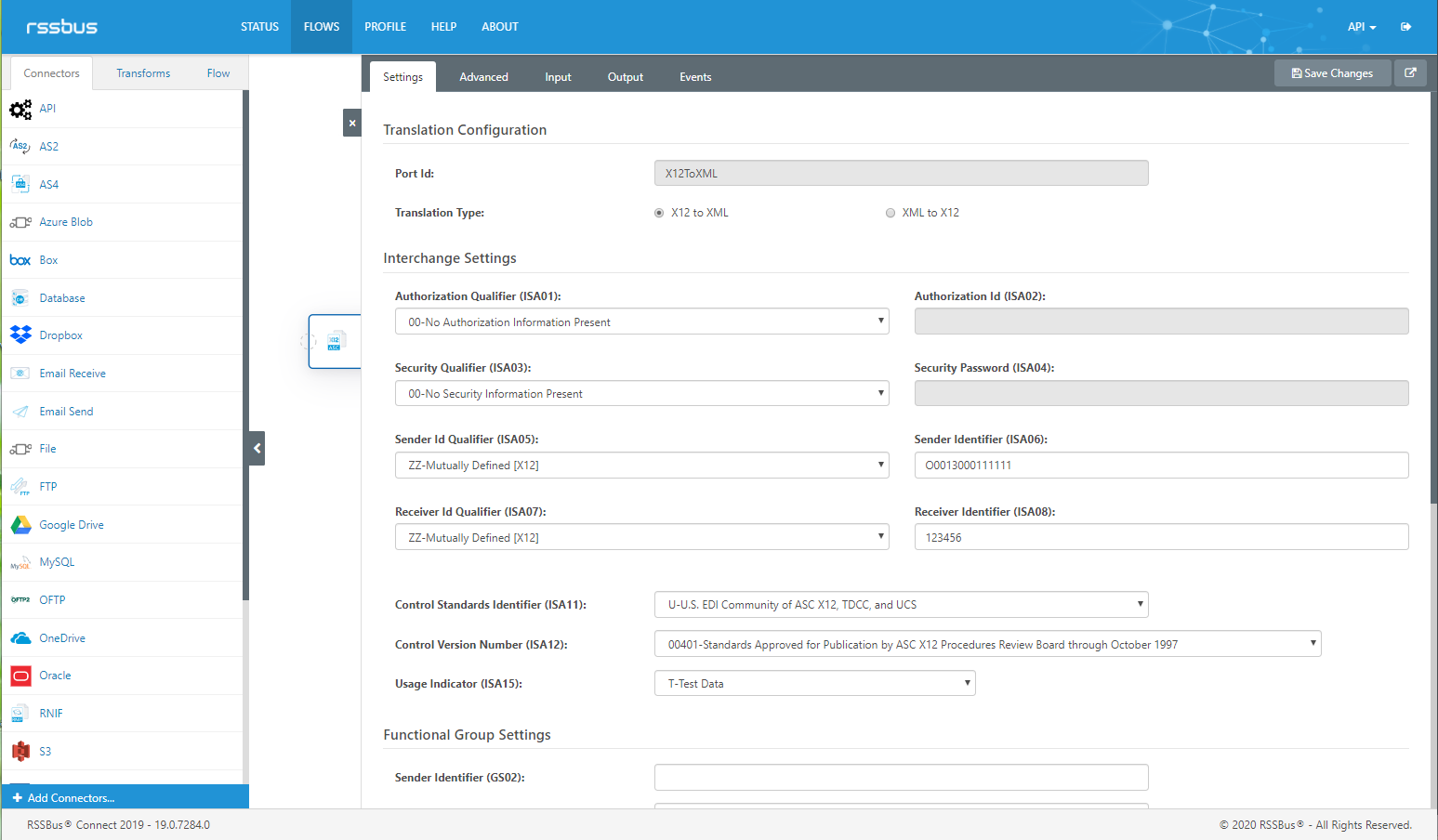

首先，配置X12端口转换类型(Translation Type)为X12 to XML，用于将X12标准报文转换为XML格式。此外，还要配置Sender Id Qualifier及Sender Identifier等信息。

配置完后，在Input界面上传需要转换为CSV格式的X12 830报文。

ISA*00*          *00*          *ZZ*O0013000111111 *ZZ*123456         *200227*0700*U*00200*000000045*0*P*>
GS*PS*O00130001111*123456*20200227*0700*000000045*X*004010
ST*830*450001
BFR*05**21*DL*A*20200217**20200227
N1*MI
PER*SC**TE*123456788
N1*ST*ABC*92*1100
N1*SU*CAB Automotive
LIN*00020*BP*12AB4356*PO*1234546543
UIT*PC
PID*F****HOUSING-TEST
FST*4032*C*D*20200217*20200217
FST*6048*C*D*20200224*20200224
SHP*01*6048*050*20200210
SHP*02*75456*050*20200210
CTT*1
SE*15*450001
GE*1*000000045
IEA*1*000000045

ISA*00* *00* *ZZ*O0013000111111 *ZZ*123456 *200227*0700*U*00200*000000045*0*P*>

GS*PS*O00130001111*123456*20200227*0700*000000045*X*004010

ST*830*450001

BFR*05**21*DL*A*20200217**20200227

N1*MI

PER*SC**TE*123456788

N1*ST*ABC*92*1100

N1*SU*CAB Automotive

LIN*00020*BP*12AB4356*PO*1234546543

UIT*PC

PID*F****HOUSING-TEST

FST*4032*C*D*20200217*20200217

FST*6048*C*D*20200224*20200224

SHP*01*6048*050*20200210

SHP*02*75456*050*20200210

CTT*1

SE*15*450001

GE*1*000000045

IEA*1*000000045

系统默认已开启自动处理，当前X12ToXML端口会自动将X12 830报文转换为XML格式。在Output页面中可以下载并查看。

<Interchange Delimiters=":*. ^~" xmlns="http://www.rssbus.com" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
    <Meta />
<ISA01>00</ISA01>
        <ISA02>          </ISA02>
        <ISA03>00</ISA03>
        <ISA04>          </ISA04>
        <ISA05>ZZ</ISA05>
        <ISA06>O0013000111111 </ISA06>
        <ISA07>ZZ</ISA07>
        <ISA08>123456         </ISA08>
        <ISA09>200227</ISA09>
        <ISA10>0700</ISA10>
        <ISA11>U</ISA11>
        <ISA12>00200</ISA12>
        <ISA13>000000045</ISA13>
        <ISA14>0</ISA14>
        <ISA15>P</ISA15>
        <ISA16>&gt;</ISA16>
    </Meta>
    <FunctionalGroup>


<Meta />
<GS01>PS</GS01>
            <GS02>O00130001111</GS02>
            <GS03>123456</GS03>
            <GS04>20200227</GS04>
            <GS05>0700</GS05>
            <GS06>000000045</GS06>
            <GS07>X</GS07>
            <GS08>004010</GS08>
        </Meta>
        <TransactionSet>
            <TX-00401-830 type="TransactionSet">


<Meta />
<ST01>830</ST01>
                    <ST02>450001</ST02>
                </Meta>
                <BFR type="Segment">
                    <BFR01>05</BFR01>
                    <BFR02 xsi:nil="true"/>
                    <BFR03>21</BFR03>
                    <BFR04>DL</BFR04>
                    <BFR05>A</BFR05>
                    <BFR06>20200217</BFR06>
                    <BFR07 xsi:nil="true"/>
                    <BFR08>20200227</BFR08>
                </BFR>
                <N1Loop1 type="Loop">
                    <N1 type="Segment">
                        <N101>MI</N101>
                    </N1>
                    <PER type="Segment">
                        <PER01>SC</PER01>
                        <PER02 xsi:nil="true"/>
                        <PER03>TE</PER03>
                        <PER04>123456788</PER04>
                    </PER>
                </N1Loop1>
                <N1Loop1 type="Loop">
                    <N1 type="Segment">
                        <N101>ST</N101>
                        <N102>ABC</N102>
                        <N103>92</N103>
                        <N104>1100</N104>
                    </N1>
                </N1Loop1>
                <N1Loop1 type="Loop">
                    <N1 type="Segment">
                        <N101>SU</N101>
                        <N102>CAB Automotive</N102>
                    </N1>
                </N1Loop1>
                <LINLoop1 type="Loop">
                    <LIN type="Segment">
                        <LIN01>00020</LIN01>
                        <LIN02>BP</LIN02>
                        <LIN03>12AB4356</LIN03>
                        <LIN04>PO</LIN04>
                        <LIN05>1234546543</LIN05>
                    </LIN>
                    <UIT type="Segment">
                        <UIT01 type="Composite">
                            <UIT0101>PC</UIT0101>
                        </UIT01>
                    </UIT>
                    <PID type="Segment">
                        <PID01>F</PID01>
                        <PID02/>
                        <PID03/>
                        <PID04 xsi:nil="true"/>
                        <PID05>HOUSING-TEST</PID05>
                    </PID>
                    <FSTLoop1 type="Loop">
                        <FST type="Segment">
                            <FST01>4032</FST01>
                            <FST02>C</FST02>
                            <FST03>D</FST03>
                            <FST04>20200217</FST04>
                            <FST05>20200217</FST05>
                        </FST>
                    </FSTLoop1>
                    <FSTLoop1 type="Loop">
                        <FST type="Segment">
                            <FST01>6048</FST01>
                            <FST02>C</FST02>
                            <FST03>D</FST03>
                            <FST04>20200224</FST04>
                            <FST05>20200224</FST05>
                        </FST>
                    </FSTLoop1>
                    <SHPLoop1 type="Loop">
                        <SHP type="Segment">
                            <SHP01>01</SHP01>
                            <SHP02>6048</SHP02>
                            <SHP03>050</SHP03>
                            <SHP04>20200210</SHP04>
                        </SHP>
                    </SHPLoop1>
                    <SHPLoop1 type="Loop">
                        <SHP type="Segment">
                            <SHP01>02</SHP01>
                            <SHP02>75456</SHP02>
                            <SHP03>050</SHP03>
                            <SHP04>20200210</SHP04>
                        </SHP>
                    </SHPLoop1>
                </LINLoop1>
                <CTT type="Segment">
                    <CTT01>1</CTT01>
                </CTT>
            </TX-00401-830>
        </TransactionSet>
    </FunctionalGroup>
</Interchange>

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

</Meta>

</Meta>

<TX-00401-830 type="TransactionSet">

</Meta>

</BFR>

</N1>

</PER>

</N1Loop1>

</N1>

</N1Loop1>

<N102>CAB Automotive</N102>

</N1>

</N1Loop1>

</LIN>

</UIT01>

</UIT>

<PID05>HOUSING-TEST</PID05>

</PID>

</FST>

</FSTLoop1>

</FST>

</FSTLoop1>

</SHP>

</SHPLoop1>

</SHP>

</SHPLoop1>

</LINLoop1>

</CTT>

</TX-00401-830>

</TransactionSet>

</FunctionalGroup>

</Interchange>

XMlMap830端口

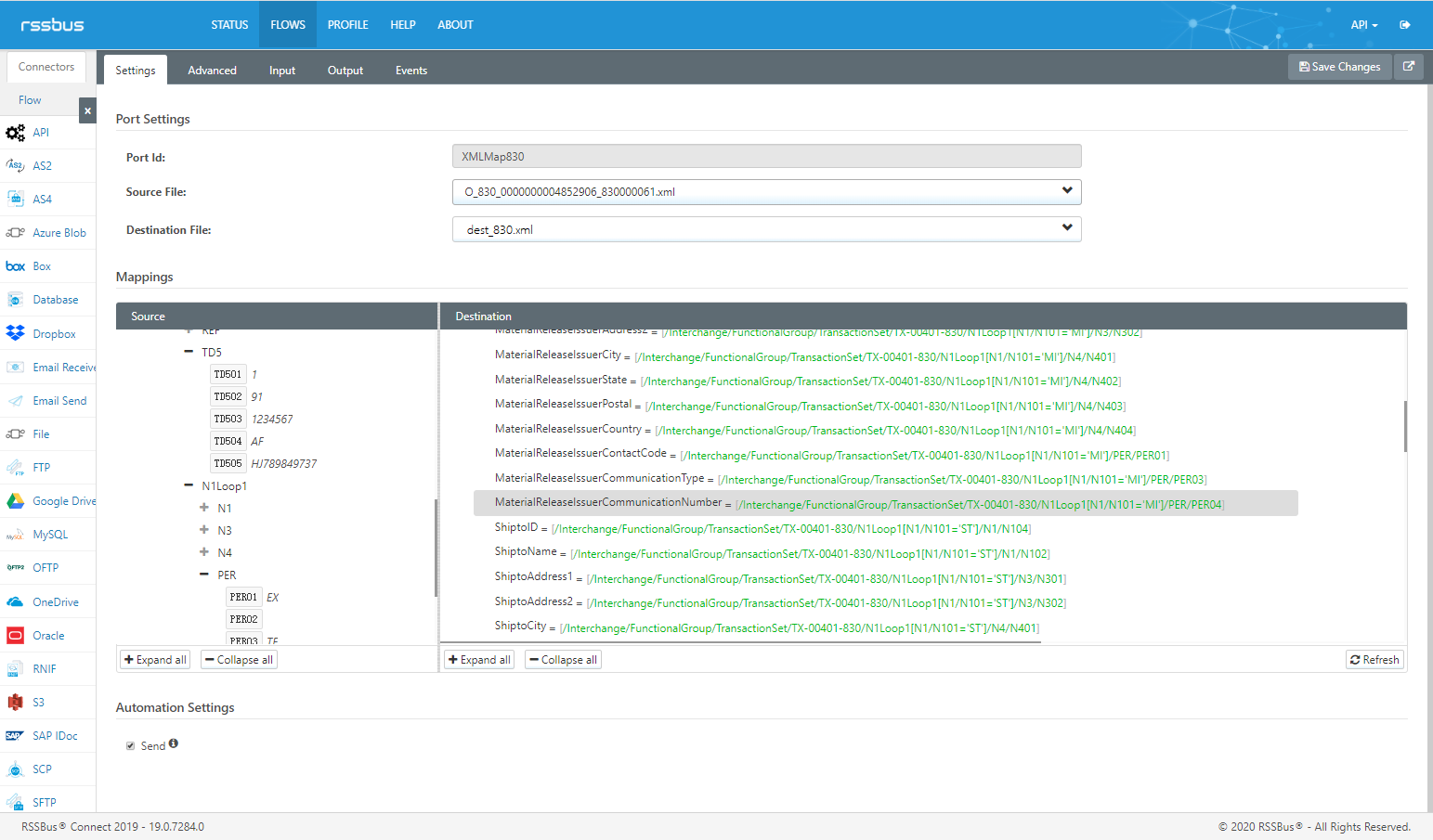

经由X12ToXML端口端口处理后，得到以上XML格式文件。接下来，通过XMlMap830端口处理可以将原本多层复杂结构的知行EDI系统默认XML格式文件转换为单层结构的XML文件。与上一步X12转换为XML不同的是，XMlMap830端口是需要通过界面操作拖拽完成数据关系映射来完成。

转化后，得到以下单层结构的XML格式文件，以便后续CSV端口处理。

<?xml version="1.0" encoding="UTF-8"?>
<Items>
  <_830>
    <ForecastNo></ForecastNo>
    <ReleaseNo>21</ReleaseNo>
    <ScheduleType>DL</ScheduleType>
    <ScheduleQtyType>A</ScheduleQtyType>
    <StartDate>20200217</StartDate>
    <ForecastCreateDate>20200227</ForecastCreateDate>
    <NotesID></NotesID>
    <Notes></Notes>
    <RoutingSequenceCode></RoutingSequenceCode>
    <CarrierCode></CarrierCode>
    <TransportMethodCode></TransportMethodCode>
    <RoutingInformation></RoutingInformation>
    <MaterialReleaseIssuerID></MaterialReleaseIssuerID>
    <MaterialReleaseIssuerName></MaterialReleaseIssuerName>
    <MaterialReleaseIssuerAddress1></MaterialReleaseIssuerAddress1>
    <MaterialReleaseIssuerAddress2></MaterialReleaseIssuerAddress2>
    <MaterialReleaseIssuerCity></MaterialReleaseIssuerCity>
    <MaterialReleaseIssuerState></MaterialReleaseIssuerState>
    <MaterialReleaseIssuerPostal></MaterialReleaseIssuerPostal>
    <MaterialReleaseIssuerCountry></MaterialReleaseIssuerCountry>
    <MaterialReleaseIssuerContactCode>SC</MaterialReleaseIssuerContactCode>
    <MaterialReleaseIssuerCommunicationType>TE</MaterialReleaseIssuerCommunicationType>
    <MaterialReleaseIssuerCommunicationNumber>123456788</MaterialReleaseIssuerCommunicationNumber>
    <ShiptoID>1100</ShiptoID>
    <ShiptoName>ABC</ShiptoName>
    <ShiptoAddress1></ShiptoAddress1>
    <ShiptoAddress2></ShiptoAddress2>
    <ShiptoCity></ShiptoCity>
    <ShiptoState></ShiptoState>
    <ShiptoPostal></ShiptoPostal>
    <ShiptoCountry></ShiptoCountry>
    <ShiptoContactCode></ShiptoContactCode>
    <ShiptoCommunicationType></ShiptoCommunicationType>
    <ShiptoCommunicationNumber></ShiptoCommunicationNumber>
    <SupplierID></SupplierID>
    <SupplierName>CAB Automotive</SupplierName>
    <SupplierAddress1></SupplierAddress1>
    <SupplierAddress2></SupplierAddress2>
    <SupplierCity></SupplierCity>
    <SupplierState></SupplierState>
    <SupplierPostal></SupplierPostal>
    <SupplierCountry></SupplierCountry>
    <SupplierContactCode></SupplierContactCode>
    <SupplierCommunicationType></SupplierCommunicationType>
    <SupplierCommunicationNumber></SupplierCommunicationNumber>
    <POLineNumber>00020</POLineNumber>
    <BuyerPartNumber>12AB4356</BuyerPartNumber>
    <PartDescription>HOUSING-TEST</PartDescription>
    <PartRevisionLevel></PartRevisionLevel>
    <PONumber>1234546543</PONumber>
    <Unit>PC</Unit>
    <UnitPrice></UnitPrice>
    <ExpeditorName></ExpeditorName>
    <ExpeditorTel></ExpeditorTel>
    <MaterialSchedulerName></MaterialSchedulerName>
    <MaterialSchedulerTel></MaterialSchedulerTel>
    <ResourceAuthorizationCode></ResourceAuthorizationCode>
    <AuthorizationThroughDate></AuthorizationThroughDate>
    <AuthorizationCumulatedQuantity></AuthorizationCumulatedQuantity>
    <CumulativeStartDate></CumulativeStartDate>
    <Quantity>4032</Quantity>
    <ForecastCode>C</ForecastCode>
    <ForecastTime>D</ForecastTime>
    <ScheduleStartDate>20200217</ScheduleStartDate>
    <ScheduleEndDate>20200217</ScheduleEndDate>
    <ForecastReferenceNumber></ForecastReferenceNumber>
    <LastReceivedQty>6048</LastReceivedQty>
    <CumulativeQtyReceived></CumulativeQtyReceived>
    <CumulativeScrapQtyReceived></CumulativeScrapQtyReceived>
    <LastReceivedDate>20200210</LastReceivedDate>
    <CumulativeQtyReceivedStartDate></CumulativeQtyReceivedStartDate>
    <CumulativeQtyReceivedEndDate></CumulativeQtyReceivedEndDate>
    <CumulativeScrapQtyReceivedStartDate></CumulativeScrapQtyReceivedStartDate>
    <CumulativeScrapQtyReceivedEndDate></CumulativeScrapQtyReceivedEndDate>
  </_830>
  <_830>
    <ForecastNo></ForecastNo>
    <ReleaseNo>21</ReleaseNo>
    <ScheduleType>DL</ScheduleType>
    <ScheduleQtyType>A</ScheduleQtyType>
    <StartDate>20200217</StartDate>
    <ForecastCreateDate>20200227</ForecastCreateDate>
    <NotesID></NotesID>
    <Notes></Notes>
    <RoutingSequenceCode></RoutingSequenceCode>
    <CarrierCode></CarrierCode>
    <TransportMethodCode></TransportMethodCode>
    <RoutingInformation></RoutingInformation>
    <MaterialReleaseIssuerID></MaterialReleaseIssuerID>
    <MaterialReleaseIssuerName></MaterialReleaseIssuerName>
    <MaterialReleaseIssuerAddress1></MaterialReleaseIssuerAddress1>
    <MaterialReleaseIssuerAddress2></MaterialReleaseIssuerAddress2>
    <MaterialReleaseIssuerCity></MaterialReleaseIssuerCity>
    <MaterialReleaseIssuerState></MaterialReleaseIssuerState>
    <MaterialReleaseIssuerPostal></MaterialReleaseIssuerPostal>
    <MaterialReleaseIssuerCountry></MaterialReleaseIssuerCountry>
    <MaterialReleaseIssuerContactCode>SC</MaterialReleaseIssuerContactCode>
    <MaterialReleaseIssuerCommunicationType>TE</MaterialReleaseIssuerCommunicationType>
    <MaterialReleaseIssuerCommunicationNumber>123456788</MaterialReleaseIssuerCommunicationNumber>
    <ShiptoID>1100</ShiptoID>
    <ShiptoName>ABC</ShiptoName>
    <ShiptoAddress1></ShiptoAddress1>
    <ShiptoAddress2></ShiptoAddress2>
    <ShiptoCity></ShiptoCity>
    <ShiptoState></ShiptoState>
    <ShiptoPostal></ShiptoPostal>
    <ShiptoCountry></ShiptoCountry>
    <ShiptoContactCode></ShiptoContactCode>
    <ShiptoCommunicationType></ShiptoCommunicationType>
    <ShiptoCommunicationNumber></ShiptoCommunicationNumber>
    <SupplierID></SupplierID>
    <SupplierName>CAB Automotive</SupplierName>
    <SupplierAddress1></SupplierAddress1>
    <SupplierAddress2></SupplierAddress2>
    <SupplierCity></SupplierCity>
    <SupplierState></SupplierState>
    <SupplierPostal></SupplierPostal>
    <SupplierCountry></SupplierCountry>
    <SupplierContactCode></SupplierContactCode>
    <SupplierCommunicationType></SupplierCommunicationType>
    <SupplierCommunicationNumber></SupplierCommunicationNumber>
    <POLineNumber>00020</POLineNumber>
    <BuyerPartNumber>12AB4356</BuyerPartNumber>
    <PartDescription>HOUSING-TEST</PartDescription>
    <PartRevisionLevel></PartRevisionLevel>
    <PONumber>1234546543</PONumber>
    <Unit>PC</Unit>
    <UnitPrice></UnitPrice>
    <ExpeditorName></ExpeditorName>
    <ExpeditorTel></ExpeditorTel>
    <MaterialSchedulerName></MaterialSchedulerName>
    <MaterialSchedulerTel></MaterialSchedulerTel>
    <ResourceAuthorizationCode></ResourceAuthorizationCode>
    <AuthorizationThroughDate></AuthorizationThroughDate>
    <AuthorizationCumulatedQuantity></AuthorizationCumulatedQuantity>
    <CumulativeStartDate></CumulativeStartDate>
    <Quantity>6048</Quantity>
    <ForecastCode>C</ForecastCode>
    <ForecastTime>D</ForecastTime>
    <ScheduleStartDate>20200224</ScheduleStartDate>
    <ScheduleEndDate>20200224</ScheduleEndDate>
    <ForecastReferenceNumber></ForecastReferenceNumber>
    <LastReceivedQty>6048</LastReceivedQty>
    <CumulativeQtyReceived></CumulativeQtyReceived>
    <CumulativeScrapQtyReceived></CumulativeScrapQtyReceived>
    <LastReceivedDate>20200210</LastReceivedDate>
    <CumulativeQtyReceivedStartDate></CumulativeQtyReceivedStartDate>
    <CumulativeQtyReceivedEndDate></CumulativeQtyReceivedEndDate>
    <CumulativeScrapQtyReceivedStartDate></CumulativeScrapQtyReceivedStartDate>
    <CumulativeScrapQtyReceivedEndDate></CumulativeScrapQtyReceivedEndDate>
  </_830>
</Items>

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

<?xml version="1.0" encoding="UTF-8"?>

<Items>

<_830>

<SupplierName>CAB Automotive</SupplierName>

<PartDescription>HOUSING-TEST</PartDescription>

</_830>

<_830>

<SupplierName>CAB Automotive</SupplierName>

<PartDescription>HOUSING-TEST</PartDescription>

</_830>

</Items>

XMlMap830端口

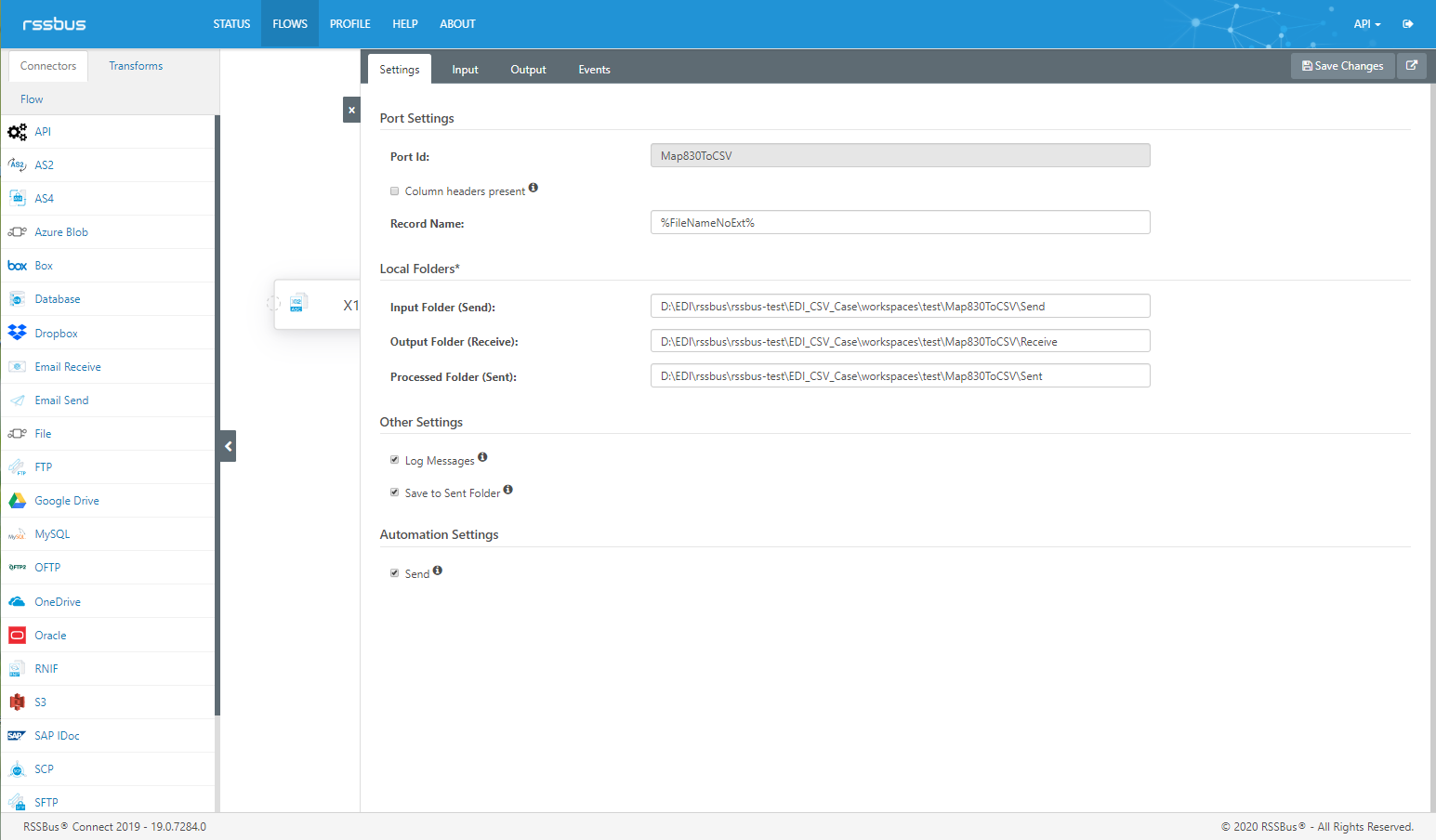

最后一步，通过CSV端口就可以将XML格式的文件转换为CSV格式。无需代码，使用端口现有功能即可快速将XML格式转换为CSV格式文件。

"ForecastNo","ReleaseNo","ScheduleType","ScheduleQtyType","StartDate","ForecastCreateDate","NotesID","Notes","RoutingSequenceCode","CarrierCode","TransportMethodCode","RoutingInformation","MaterialReleaseIssuerID","MaterialReleaseIssuerName","MaterialReleaseIssuerAddress1","MaterialReleaseIssuerAddress2","MaterialReleaseIssuerCity","MaterialReleaseIssuerState","MaterialReleaseIssuerPostal","MaterialReleaseIssuerCountry","MaterialReleaseIssuerContactCode","MaterialReleaseIssuerCommunicationType","MaterialReleaseIssuerCommunicationNumber","ShiptoID","ShiptoName","ShiptoAddress1","ShiptoAddress2","ShiptoCity","ShiptoState","ShiptoPostal","ShiptoCountry","ShiptoContactCode","ShiptoCommunicationType","ShiptoCommunicationNumber","SupplierID","SupplierName","SupplierAddress1","SupplierAddress2","SupplierCity","SupplierState","SupplierPostal","SupplierCountry","SupplierContactCode","SupplierCommunicationType","SupplierCommunicationNumber","POLineNumber","BuyerPartNumber","PartDescription","PartRevisionLevel","PONumber","Unit","UnitPrice","ExpeditorName","ExpeditorTel","MaterialSchedulerName","MaterialSchedulerTel","ResourceAuthorizationCode","AuthorizationThroughDate","AuthorizationCumulatedQuantity","CumulativeStartDate","Quantity","ForecastCode","ForecastTime","ScheduleStartDate","ScheduleEndDate","ForecastReferenceNumber","LastReceivedQty","CumulativeQtyReceived","CumulativeScrapQtyReceived","LastReceivedDate","CumulativeQtyReceivedStartDate","CumulativeQtyReceivedEndDate","CumulativeScrapQtyReceivedStartDate","CumulativeScrapQtyReceivedEndDate"
"","21","DL","A","20200217","20200227","","","","","","","","","","","","","","","SC","TE","123456788","1100","ABC","","","","","","","","","","","CAB Automotive","","","","","","","","","","00020","12AB4356","HOUSING-TEST","","1234546543","PC","","","","","","","","","","4032","C","D","20200217","20200217","","6048","","","20200210","","","",""
"","21","DL","A","20200217","20200227","","","","","","","","","","","","","","","SC","TE","123456788","1100","ABC","","","","","","","","","","","CAB Automotive","","","","","","","","","","00020","12AB4356","HOUSING-TEST","","1234546543","PC","","","","","","","","","","6048","C","D","20200224","20200224","","6048","","","20200210","","","",""

"ForecastNo","ReleaseNo","ScheduleType","ScheduleQtyType","StartDate","ForecastCreateDate","NotesID","Notes","RoutingSequenceCode","CarrierCode","TransportMethodCode","RoutingInformation","MaterialReleaseIssuerID","MaterialReleaseIssuerName","MaterialReleaseIssuerAddress1","MaterialReleaseIssuerAddress2","MaterialReleaseIssuerCity","MaterialReleaseIssuerState","MaterialReleaseIssuerPostal","MaterialReleaseIssuerCountry","MaterialReleaseIssuerContactCode","MaterialReleaseIssuerCommunicationType","MaterialReleaseIssuerCommunicationNumber","ShiptoID","ShiptoName","ShiptoAddress1","ShiptoAddress2","ShiptoCity","ShiptoState","ShiptoPostal","ShiptoCountry","ShiptoContactCode","ShiptoCommunicationType","ShiptoCommunicationNumber","SupplierID","SupplierName","SupplierAddress1","SupplierAddress2","SupplierCity","SupplierState","SupplierPostal","SupplierCountry","SupplierContactCode","SupplierCommunicationType","SupplierCommunicationNumber","POLineNumber","BuyerPartNumber","PartDescription","PartRevisionLevel","PONumber","Unit","UnitPrice","ExpeditorName","ExpeditorTel","MaterialSchedulerName","MaterialSchedulerTel","ResourceAuthorizationCode","AuthorizationThroughDate","AuthorizationCumulatedQuantity","CumulativeStartDate","Quantity","ForecastCode","ForecastTime","ScheduleStartDate","ScheduleEndDate","ForecastReferenceNumber","LastReceivedQty","CumulativeQtyReceived","CumulativeScrapQtyReceived","LastReceivedDate","CumulativeQtyReceivedStartDate","CumulativeQtyReceivedEndDate","CumulativeScrapQtyReceivedStartDate","CumulativeScrapQtyReceivedEndDate"

"","21","DL","A","20200217","20200227","","","","","","","","","","","","","","","SC","TE","123456788","1100","ABC","","","","","","","","","","","CAB Automotive","","","","","","","","","","00020","12AB4356","HOUSING-TEST","","1234546543","PC","","","","","","","","","","4032","C","D","20200217","20200217","","6048","","","20200210","","","",""

"","21","DL","A","20200217","20200227","","","","","","","","","","","","","","","SC","TE","123456788","1100","ABC","","","","","","","","","","","CAB Automotive","","","","","","","","","","00020","12AB4356","HOUSING-TEST","","1234546543","PC","","","","","","","","","","6048","C","D","20200224","20200224","","6048","","","20200210","","","",""

经过以上3个端口的一次处理，原本生涩难懂的X12 830报文已经转为了CSV格式。不论是直接导入现有业务系统或是直接打开查看，您就能轻松地读取到重要的业务信息。现在就下载知行EDI系统，免费试用30天。继续关注知行软件，了解更多EDI系统功能及配置方法，帮您快速上手，搞定EDI项目。

免费试用

注：文案部分图片及内容来源于网络，版权归原创作者所有，如有侵犯到您的权益，请您联系我们进行删除，给您带来困扰，我们深感抱歉。

标签： ArcESB, CSV, EDI, RSSBus, 电子数据交换, 知行之桥, 知行软件EDI
文章分类帮助文档, 操作指南, 脚本和自动化, 解决方案

177-8250-8152 / sales@kasoftware.cn

如何将EDI报文转换为CSV格式文件？

X12ToXML端口

XMlMap830端口

XMlMap830端口

文章分类

最新发布

知行软件 | EDI通信专家
